Home / Products / American UL Power Cord / USA NEMA 1-15P Plug, American Power Supply Cords

Wholesale USA NEMA 1-15P Plug, American Power Supply Cords

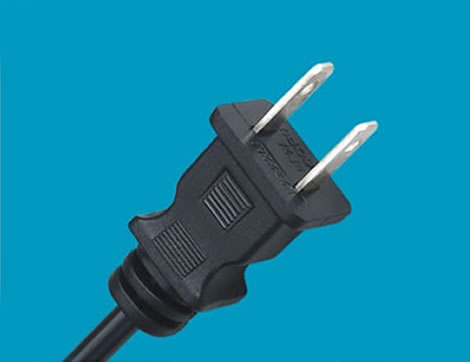

USA NEMA 1-15P Plug, American Power Supply Cords

Plug and Connector Type: A
American UL 2 pins NEMA 1-15P plug, American Power Supply Cords with UL Certified List.
Built to NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 standards.
Rated up to 10A, 13A, 15A 125V.

Our USA NEMA 1-15P Plug, American Power Supply Cords products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

get a quote
  • LABEL

    VALUE

    Connector Standard

    NEMA 1-15P CSA CAN/CSA-22.2 No.21-95

    Maximum Current rating

    10A, 13A, 15A

    Maximum Voltage

    125V

    Number of Poles and Wires

    2 poles, 2 wires

    Copper Conductor Material

    Oxygen-free Copper (OFCU)

    Outer Jacket Material

    PVC, Rubber, Halogen-Free, Textile braid

    Blade Material

    Nickel coated Brass

    Flammability Rating

    UL 94V-0

    Color

    Black is standard but any color available

    Temperature Rating

    Minus 40C though plus 75C

    Approvals

    UL

    Environmental Certifications

    RoHS, REACH, PAHs

    Testing

    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

    Country of Origin

    Made In China

    Packing

    Standard Export Carton
